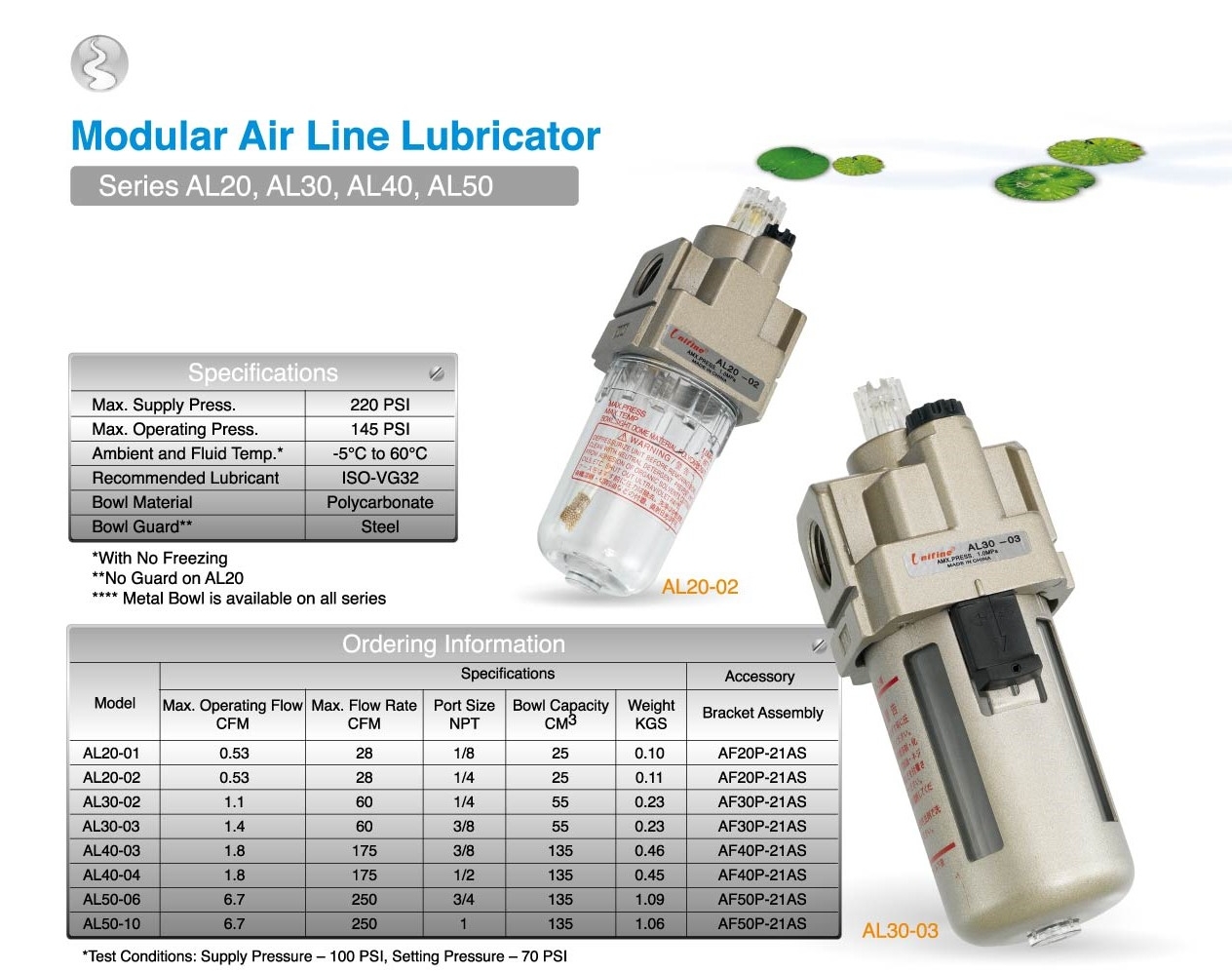

Air Line Lubricator Manufacturer
At Scano Industrial Corp., we’re looking for professionals dedicated to providing excellent air line lubricator and outstanding customer service. We make a promise to our customers to take care of all their needs, and need team members who can help deliver on that promise. We can promise that whatever your modular air line lubricator problem is, we will find a way to solve it to your satisfaction. If you are interested in modular air line lubricator and air lubricators, please feel free to contact us.
We can produce Modular Air Line Lubricator according to customers' need.
Specification :
Specifications | |
Max. Supply Press. | 220 PSI |
Max. Operating Press. | 145 PSI |
Ambient and Fluid Temp.* | -5°C to 60°C |
Recommended Lubricant | ISO-VG32 |
Bowl Material | Polycarbonate |
Bowl Guard** | Steel |
*With No Freezing
**No Guard on AL20
****Metal Bowl is available on all series
Ordering Information | ||||||
Model | Specifications | Accessory | ||||
Max. Operating Flow CFM | Max. Flow Rate CFM | Port Size NPT | Bowl Capacity CM³ | Weight KGS | Bracket Assembly | |
AL20-01 | 0.53 | 28 | 1/8 | 25 | 0.10 | AF20P-21AS |
AL20-02 | 0.53 | 28 | 1/4 | 25 | 0.11 | AF20P-21AS |
AL30-02 | 1.1 | 60 | 1/4 | 55 | 0.23 | AF30P-21AS |
AL30-03 | 1.4 | 60 | 3/8 | 55 | 0.23 | AF30P-21AS |
AL40-03 | 1.8 | 175 | 3/8 | 135 | 0.46 | AF40P-21AS |
AL40-04 | 1.8 | 175 | 1/2 | 135 | 0.45 | AF40P-21AS |
AL50-06 | 6.7 | 250 | 3/4 | 135 | 1.09 | AF50P-21AS |
AL50-10 | 6.7 | 250 | 1 | 135 | 1.06 | AF50P-21AS |
*Test Conditions:Supply Pressure-100 PSI, Setting Pressure - 70 PSI

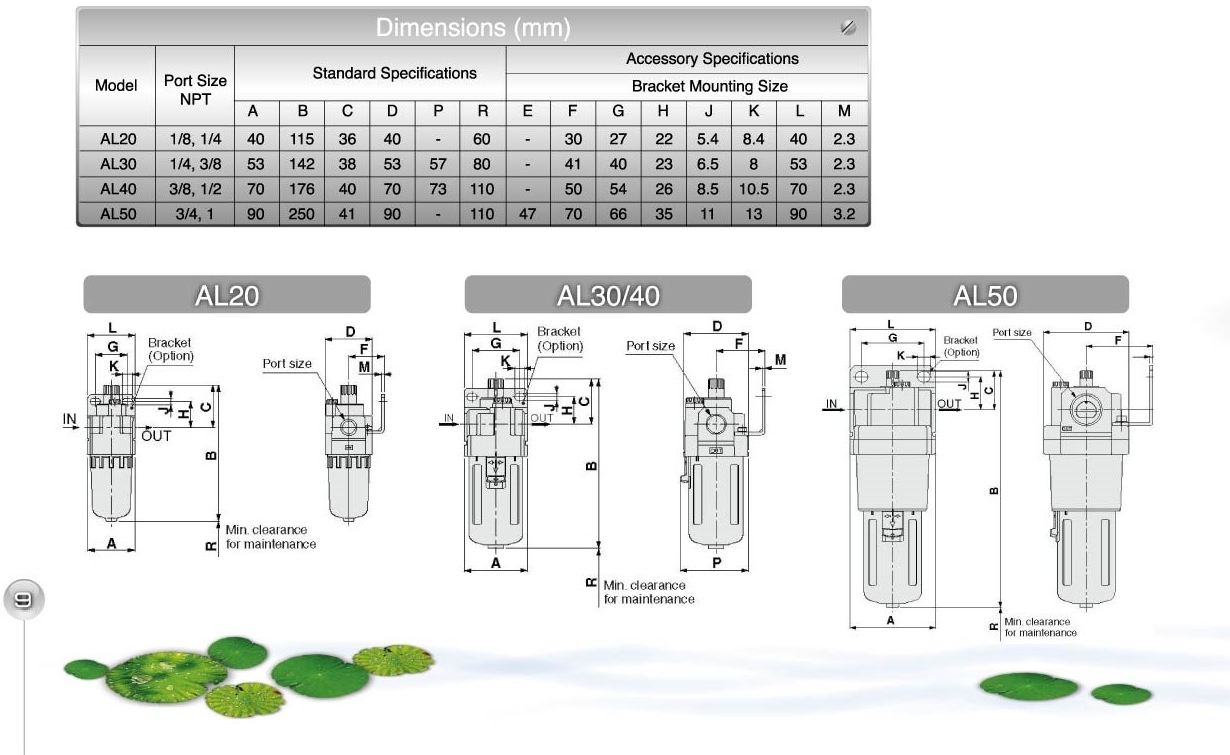

Dimensions (mm) | |||||||||||||||
Model | Port Size NPT | Standard Specifications | Accessory Specifications | ||||||||||||
Bracket Mounting Size | |||||||||||||||
A | B | C | D | P | R | E | F | G | H | J | K | L | M | ||
AL20 | 1/8, 1/4 | 40 | 115 | 36 | 40 | - | 60 | - | 30 | 27 | 22 | 5.4 | 8.4 | 40 | 2.3 |
AL30 | 1/4, 3/8 | 53 | 142 | 38 | 53 | 57 | 80 | - | 41 | 40 | 23 | 6.5 | 8 | 53 | 2.3 |
AL40 | 3/8, 1/2 | 70 | 176 | 40 | 70 | 73 | 110 | - | 50 | 54 | 26 | 8.5 | 10.5 | 70 | 2.3 |
AL50 | 3/4, 1 | 90 | 250 | 41 | 90 | - | 110 | 47 | 70 | 66 | 35 | 11 | 13 | 90 | 3.2 |
Our company is a well-known manufacturer of premium grade air lubricators in Taiwan. We are a technology driven company and as a result, we utilize the latest technology in the industry and use modern production techniques in the making of our modular air line lubricator. We are dedicated to fulfill the needs of our customers by offering high quality products as well as prompt and reliable services. Thank you for the opportunity to fulfill your modular air lubricator and air lubricators supply needs. We appreciate your business!
