Modular Air Filter
Scano Industrial Corp. is a leader in the modular air filter industry because of our commitment to excellence, which is achieved by providing the best products and solutions to our customers through exceptional engineering capabilities. You can also visit Scano Industrial Corp.'s showroom where you can find excellent performance air filters. If you need any help in choosing the right modular air filter to match your requirements, we are happy to create a free, detailed system specification and quote tailored to your requirements.
AF20,AF30,AF40,AF50

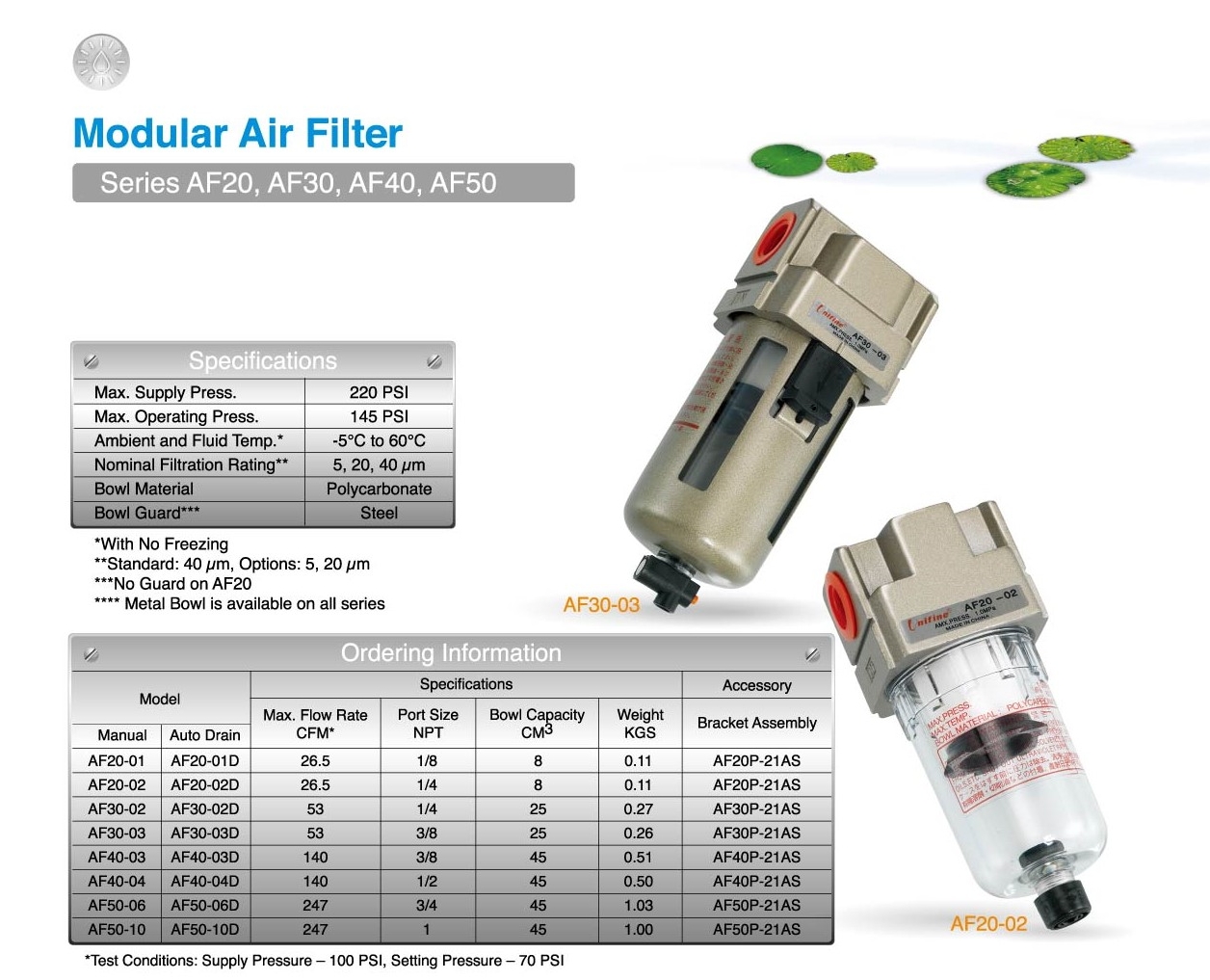

Modular Air Filter
Modular Air Filter is especially designed for Filter Regulator Lubricator use.
Specification :
| Specifications | |
| Max. Supply Press. | 220 PSI |
| Max. Operating Press. | 145 PSI |
| Ambient and Fluid Temp.* | -5°C to 60°C |
| Nominal Filtration Rating** | 5,20,40 μm |
| Bowl Material | Polycarbonate |
| Bowl Guard*** | Steel |
*With No Freezing
**Standard: 40 μm, Options: 5, 20 μm
***No Guard on AF20
****Metal Bowl is available on all series
| Ordering Information | ||||||
| Model | Specifications | Accessory | ||||
| Manual | Auto Drain | Max. Flow Rate CFM* | Port Size NPT | Bowl Capacity CM³ | Weight KGS | Bracket Assembly |
| AF20-01 | AF20-01D | 26.5 | 1/8 | 8 | 0.11 | AF20P-21AS |
| AF-20-02 | AF20-02D | 26.5 | 1/4 | 8 | 0.11 | AF20P-21AS |
| AF-30-02 | AF30-02D | 53 | 1/4 | 25 | 0.27 | AF30P-21AS |
| AF30-03 | AF30-03D | 53 | 3/8 | 25 | 0.26 | AF30P-21AS |
| AF40-03 | AF40-03D | 140 | 3/8 | 45 | 0.53 | AF40P-21AS |
| AF40-04 | AF40-04D | 140 | 1/2 | 45 | 0.50 | AF40P-21AS |
| AF50-06 | AF50-06D | 247 | 3/4 | 45 | 1.03 | AF50P-21AS |
| AF50-10 | AF50-10D | 247 | 1 | 45 | 1.00 | AF50P-21AS |
*Test Conditions:Supply Pressure-100 PSI, Setting Pressure - 70 PSI

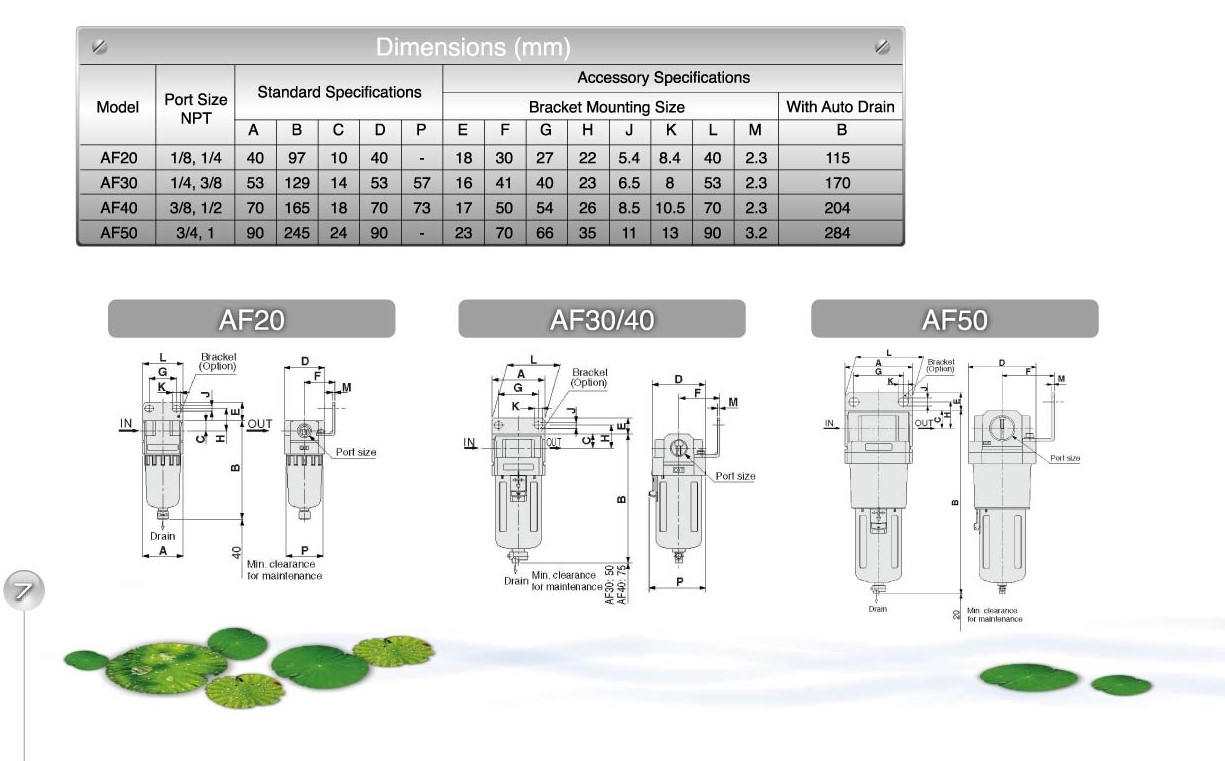

| Dimensions (mm) | |||||||||||||||
| Model | Port Size NPT | Standard Specifications | Accessory Specifications | ||||||||||||
| Bracket Mounting Size | With Auto Drain | ||||||||||||||
| A | B | C | D | P | E | F | G | H | J | K | L | M | B | ||
| AF20 | 1/8, 1/4 | 40 | 97 | 10 | 40 | - | 18 | 30 | 27 | 22 | 5.4 | 8.4 | 40 | 2.3 | 115 |
| AF30 | 1/4, 3/8 | 53 | 129 | 14 | 53 | 57 | 16 | 41 | 40 | 23 | 6.5 | 8 | 53 | 2.3 | 170 |
| AF40 | 3/8, 1/2 | 70 | 165 | 18 | 70 | 73 | 17 | 50 | 54 | 26 | 8.5 | 10.5 | 70 | 2.3 | 204 |
| AF50 | 3/4, 1 | 90 | 245 | 24 | 90 | - | 23 | 70 | 66 | 35 | 11 | 13 | 90 | 3.2 | 284 |
Scano Industrial Corp. strives to be the best modular air filter company in the world. We achieve this through technical innovation and automation backed by best in class global business practices. Assembled to exact tolerances and undergone rigorous testing, modular air filter provides factory standards for accurate fitment and specifications. Please feel free to contact us if you want to know more about air filters. As a customer-oriented company, we are more than happy to provide detailed information for you.
