Modular Air Pressure Regulator
Scano Industrial Corp. has been a leading supplier of modular air pressure regulator and air regulator to both independent and national training organizations since 1980. Our modular air pressure regulator is of supreme quality and are much appreciated by the customers for their high-tech designs, user-friendliness and operational efficiency. If you want to know more relative information about modular air pressure regulator, please contact us immediately.
AR20,AR30,AR40,AR50
Modular Air Pressure Regulator

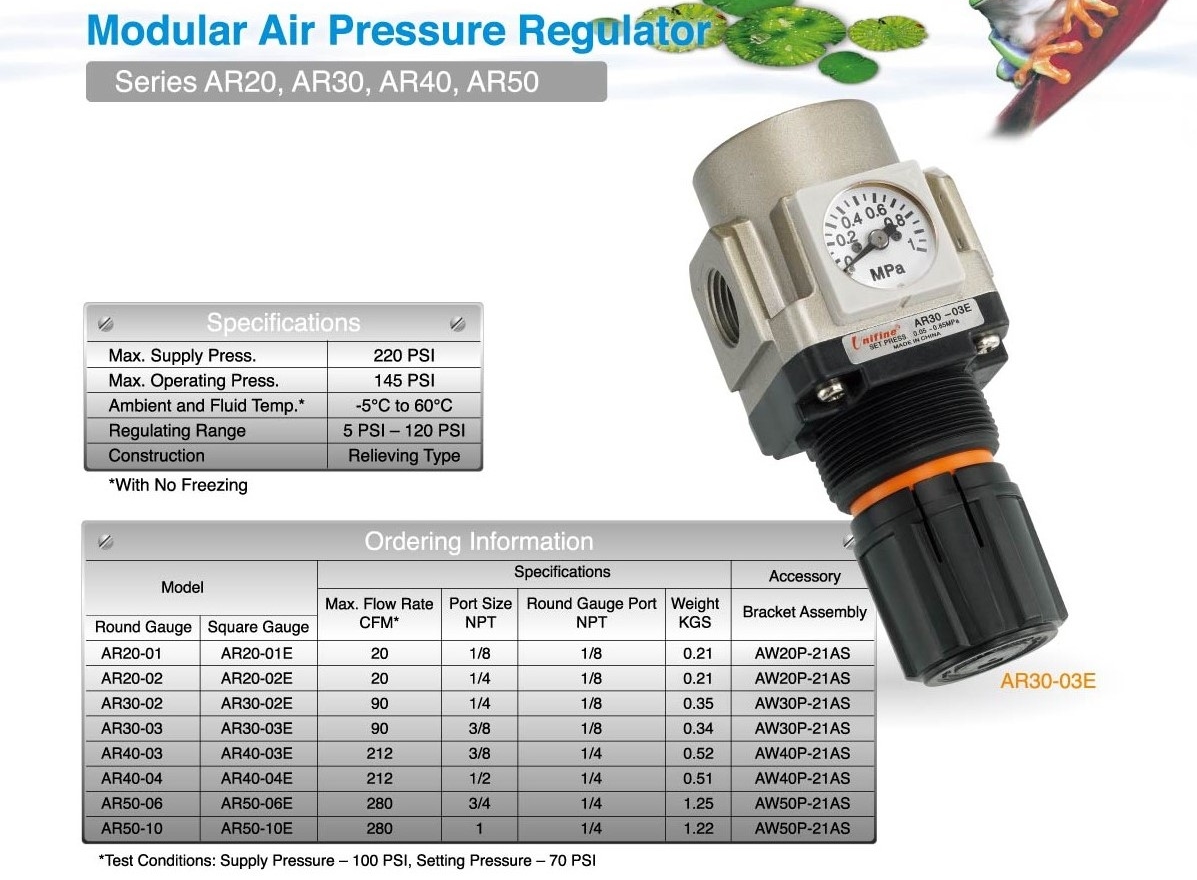

Specification :
| Specifications | |
| Max. Supply Press. | 220 PSI |
| Max. Operating Press. | 145 PSI |
| Ambient and Fluid Temp.* | -5°C to 60°C |
| Regulating Range | 5 PSI - 120 PSI |
| Construction | Relieving Type |
*With No Freezing
| Ordering Information | ||||||
| Model | Specifications | Accessory | ||||
| Manual | Auto Drain | Max. Flow Rate CFM* | Port Size NPT | Bowl Capacity CM³ | Weight KGS | Bracket Assembly |
| AR20-01 | AR20-01E | 20 | 1/8 | 1/8 | 0.21 | AW20P-21AS |
| AR20-02 | AR20-02E | 20 | 1/4 | 1/8 | 0.21 | AW20P-21AS |
| AR30-02 | AR30-02E | 90 | 1/4 | 1/8 | 0.35 | AW30P-21AS |
| AR30-03 | AR30-03E | 90 | 3/8 | 1/8 | 0.34 | AW30P-21AS |
| AR40-03 | AR40-03E | 212 | 3/8 | 1/4 | 0.52 | AW40P-21AS |
| AR40-04 | AR40-04E | 212 | 1/2 | 1/4 | 0.51 | AW40P-21AS |
| AR50-06 | AR50-06E | 280 | 3/4 | 1/4 | 1.25 | AW50P-21AS |
| AR50-10 | AR50-10E | 280 | 1 | 1/4 | 1.22 | AW50P-21AS |
*Test Conditions:Supply Pressure-100 PSI, Setting Pressure - 70 PSI

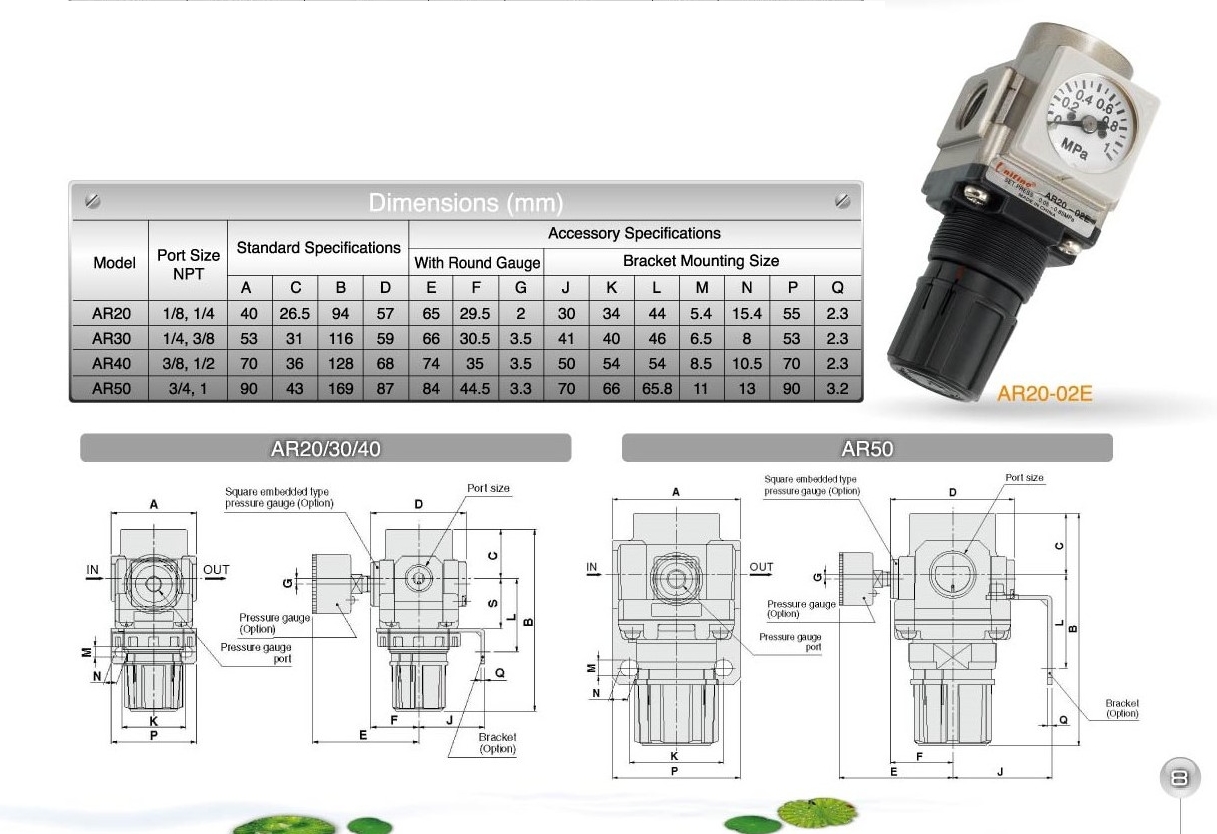

| Dimensions (mm) | |||||||||||||||
| Model | Port Size NPT | Standard Specifications | Accessory Specifications | ||||||||||||
| With Round Gauge | Bracket Mounting Size | ||||||||||||||
| A | C | B | D | E | F | G | J | K | L | M | N | P | Q | ||
| AR20 | 1/8, 1/4 | 40 | 26.5 | 94 | 57 | 65 | 29.5 | 2 | 30 | 34 | 44 | 5.4 | 15.4 | 55 | 2.3 |
| AR30 | 1/4, 3/8 | 53 | 31 | 116 | 59 | 66 | 30.5 | 3.5 | 41 | 40 | 46 | 6.5 | 8 | 53 | 2.3 |
| AR40 | 3/8, 1/2 | 70 | 36 | 128 | 68 | 74 | 35 | 3.5 | 50 | 54 | 54 | 8.5 | 10.5 | 70 | 2.3 |
| AR50 | 3/4, 1 | 90 | 43 | 169 | 87 | 84 | 44.5 | 3.3 | 70 | 66 | 65.8 | 11 | 13 | 90 | 3.2 |
Scano Industrial Corp. is a leader in the modular air pressure regulator industry because of our commitment to excellence, which is achieved by providing the best products and solutions to our customers through exceptional engineering capabilities. This air regulator will take and hold a superior edge, saving you time and giving you the best possible results. For more details about our modular air pressure regulator, please contact with us immediately.
