Filter Regulator Lubricator, Air FRL
Scano Industrial Corp. is an acknowledged leader in the manufacture of filter regulator lubricator, air FRL, with distribution across the globe. Scano Industrial Corp. provides FRL filter regulator lubricator of the highest quality with focus on flexible solutions, reliability and customer understanding. We operate worldwide, configure, service products, and also provide logistics support to deliver products and services competitively. If you’re unsure of which manufacturer to opt for, then take a look at our range of filter regulator lubricator, air FRL offering superb build and sound quality at affordable prices.
AC20,AC30,AC40,AC50

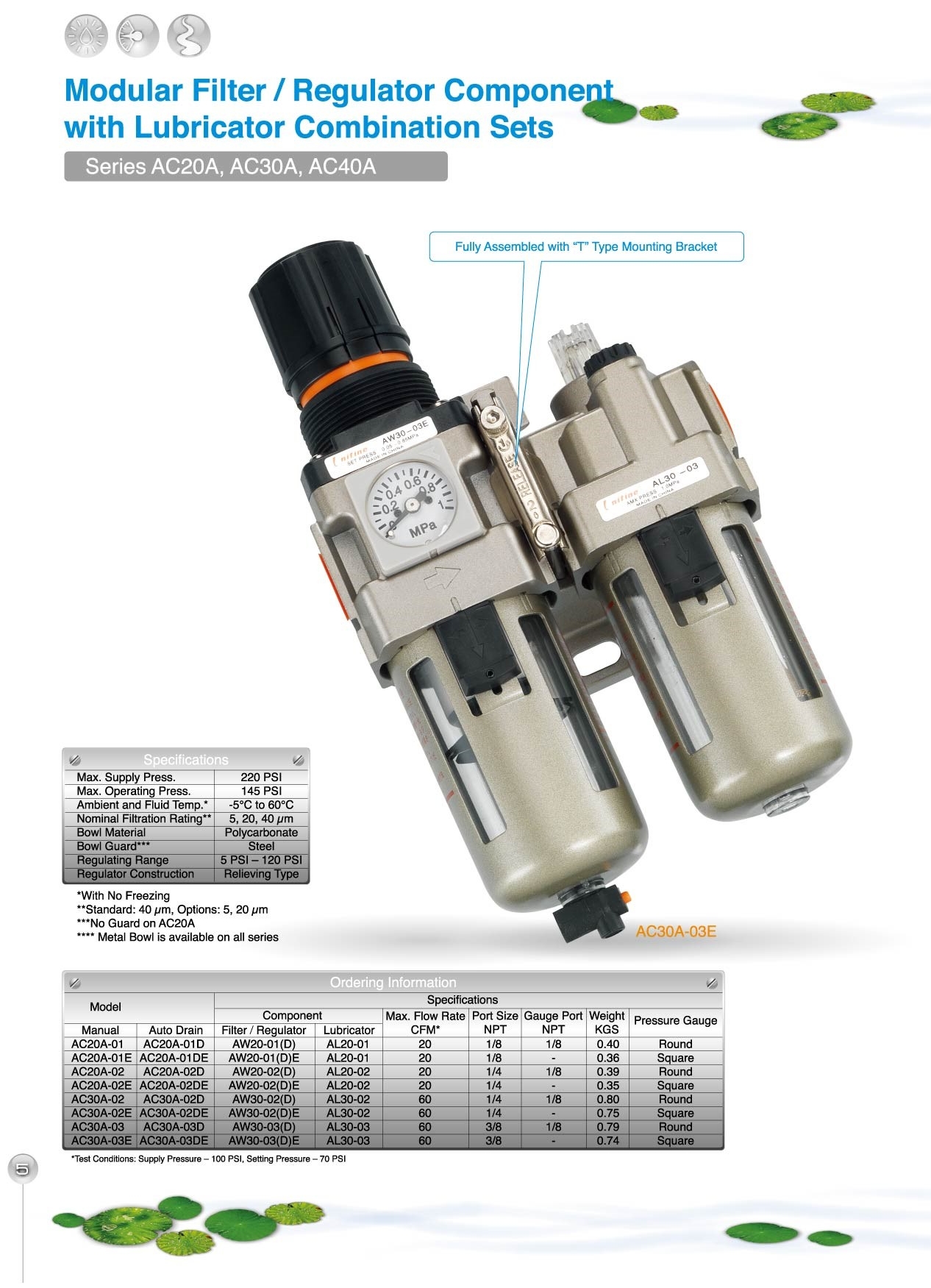

Modular Filter, Regulator and Lubricator Assembly
We provide Modular Filter, FRL Units and Regulator and Lubricator Assembly.
If you are looking for reliable Modular Filter Manufacturer, please do not hesitate to contact us.
If you are looking for reliable Modular Filter Manufacturer, please do not hesitate to contact us.
Specification :
Individual components as well as multiple combinations available!
| Specifications | |
| Max. Supply Press. | 220 PSI |
| Max. Operating Press. | 145 PSI |
| Ambient and Fluid Temp.* | -5°C to 60°C |
| Nominal Filtration Rating** | 5,20,40μm |
| Bowl Material | Polycarbonate |
| Bowl Guard** | Steel |
| Regulating Range | 5 PSI - 120 PSI |
| Regulator Construction | Relieving Type |
*With No Freezing
**Standard: 40 μm, Options:5,20 μm
***No Guard on AC20
****Metal Bowl is available on all series
| Ordering Information | |||||||||
| Model | Specifications | ||||||||
| Component | Max. Flow Rate CFM* | Port Size NPT | Gauge Port NPT | Weight KGS | Pressure Gauge | ||||
| Manual | Auto Drain | Air Filter | Regulator | Lubricator | |||||
| AC20-01 | AC20-01D | AF20-01(D) | AR20-01 | AL20-01 | 20 | 1/8 | 1/8 | 0.50 | Round |
| AC20-01E | AC20-01DE | AF20-01(D) | AR20-01E | AL20-01 | 20 | 1/8 | - | 0.45 | Square |
| AC20-02 | AC20-02D | AF20-02(D) | AR20-02 | AL20-02 | 20 | 1/4 | 1/8 | 0.50 | Round |
| AC20-02E | AC20-02DE | AF20-02(D) | AR20-02E | AL20-02 | 20 | 1/4 | - | 0.45 | Square |
| AC30-02 | AC30-02D | AF30-02(D) | AR30-02 | AL30-02 | 70 | 1/4 | 1/8 | 0.99 | Round |
| AC30-02E | AC30-02DE | AF30-02(D) | AR30-02E | AL30-02 | 70 | 1/4 | - | 0.94 | Square |
| AC30-03 | AC30-03D | AF30-03(D) | AR30-03 | AL30-03 | 70 | 3/8 | 1/8 | 0.97 | Round |
| AC30-03E | AC30-03DE | AF30-03(D) | AR30-03E | AL30-03 | 70 | 3/8 | - | 0.92 | Square |
| AC40-03 | AC40-03D | AF40-03(D) | AR40-03 | AL40-03 | 110 | 3/8 | 1/4 | 1.78 | Round |
| AC40-03E | AC40-03DE | AF40-03(D) | AR40-03E | AL40-03 | 110 | 3/8 | - | 1.73 | Square |
| AC40-04 | AC40-04D | AF40-04(D) | AR40-04 | AL40-04 | 140 | 1/2 | 1/4 | 1.74 | Round |
| AC40-04E | AC40-04DE | AF40-04(D) | AR40-04E | AL40-04 | 140 | 1/2 | - | 1.69 | Square |
| AC50-06 | AC50-06D | AF50-06(D) | AR50-06 | AL50-06 | 175 | 3/4 | 1/4 | 4.17 | Round |
| AC50-06E | AC50-06DE | AF50-06(D) | AR50-06E | AL50-06 | 175 | 3/4 | - | 4.12 | Square |
| AC50-10 | AC50-10D | AF50-10(D) | AR50-10 | AL50-10 | 175 | 1 | 1/4 | 4.08 | Round |
| AC50-10E | AC50-10DE | AF50-10(D) | AR50-10E | AL50-10 | 175 | 1 | - | 4.03 | Square |
*Test Conditions: Supply Pressure - 100 PSI, Setting Pressure - 70 PSI
| Dimension(mm) | ||||||||||||||||||
| Model | Port Size NPT | Standard Specifications | Accessory Specifications | |||||||||||||||
| A | B | C | D | Bracket Mounting Size | With Round Gauge | With Auto Drain | ||||||||||||
| E | F | G | H | J | K | L | M | N | P | Q | T | B | ||||||
| AC20 | 1/8,1/4 | 126 | 123 | 36 | 60 | 41.5 | 43 | 39 | 24 | 30 | 12 | 5.5 | 6 | 59 | 63.5 | 29.5 | 2 | 141 |
| AC30 | 1/4,3/8 | 167 | 153 | 38 | 80 | 55 | 57 | 45 | 35 | - | 14 | 7 | 10 | 74 | 66 | 30.5 | 3.5 | 194 |
| AC40 | 3/8,1/2 | 220 | 187 | 40 | 110 | 72.5 | 75 | 54 | 40 | - | 18 | 9 | 11 | 93 | 74 | 35 | 3.5 | 226 |
| AC50 | 3/4,1 | 282 | 264 | 43 | 110 | 93 | 96 | 78.5 | 50 | - | 20 | 11 | 15 | 123.5 | 84 | 44.5 | 3.3 | 303 |
Scano Industrial Corp. is a leading provider of filter regulator lubricator and performance products and is recognized throughout the machinery & industrial supplies industries for its complete selection, superior customer care, and fast delivery. All our products are precisely developed by a creative team of professionals as per contemporary market trends. If you are looking for air FRL, please do not hesitate to inform us. Please feel free to contact us if you want to know more about FRL filter regulator lubricator. As a customer-oriented company, we are more than happy to provide detailed information for you.
