902 Series
Tru-Flate Couplers

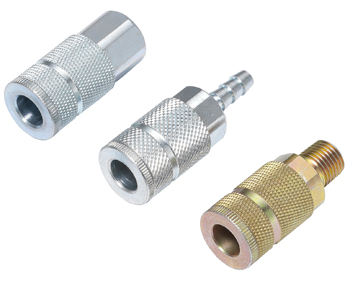

Tru-Flate Interchange Manual Couplers
Different body sizes: 1/4", 3/8", and 1/2".
Available in male thread, female thread and hose barb.
Easy and secure connections, ensuring reliable performance in pneumatic systems.
Different body sizes: 1/4", 3/8", and 1/2".
Available in male thread, female thread and hose barb.
Easy and secure connections, ensuring reliable performance in pneumatic systems.
902 Series Tru-Flate Interchange Manual Couplers
Specification
Material: Steel except Grip type
| Couplers (1/4” Body) | |
| Part No. | Thread/Hose Barb Size |
| 902CF2 | 1/4” NPT, Female |
| 902CM2 | 1/4” NPT, Male |
| 902CB2 | 1/4” Hose Barb |
| 902CF3 | 3/8” NPT, Female |
| 902CM3 | 3/8” NPT, Male |
| 902CB3 | 3/8” Hose Barb |
| 902CF2-GB | 1/4” NPT, Female, Grip Type, Brass |
| 902CM2-GB | 1/4” NPT, Male, Grip Type, Brass |
| Couplers (3/8” Body) | |
| Part No. | Thread/Hose Barb Size |
| 902CF32 | 1/4” NPT, Female |
| 902CM32 | 1/4” NPT, Male |
| 902CB32 | 1/4” Hose Barb |
| 902CF33 | 3/8” NPT, Female |
| 902CM33 | 3/8” NPT, Male |
| 902CB33 | 3/8” Hose Barb |
| Couplers (1/2” Body) | |
| Part No. | Thread Size |
| 902CF43 | 3/8” NPT, Female |
| 902CM43 | 3/8” NPT, Male |
| 902CF44 | 1/2” NPT, Female |
| 902CM44 | 1/2” NPT, Male |
907 Series Automatic Tru-Flate Couplers are available
